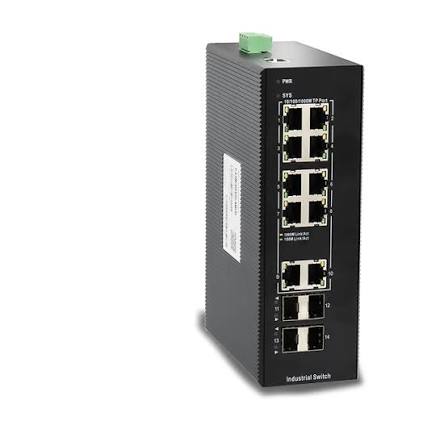

BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch

About The BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch

The BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch is a full-Gigabit managed industrial Ethernet switch for demanding networking environments. It supports industrial networking, surveillance, automation, transportation, and outdoor Ethernet applications. The switch provides 8 Gigabit PoE+ RJ45 ports and 2 Gigabit SFP fiber uplink ports. Therefore, it delivers high-speed network connectivity and power to compatible PoE devices through the same Ethernet connection. In addition, its 240W total PoE power budget supports multiple IP cameras, wireless access points, industrial terminals, and other PoE-enabled equipment. BDCOM built the switch on its BDROS platform and included advanced Layer 2+ networking functions. These functions include ACL, QinQ, QoS, static routing, VLAN, STP/RSTP/MSTP, ERPS, IGMP Snooping, DHCP Snooping, and 802.1X authentication.

Specification

BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch in BD

The BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch provides a practical networking solution for industrial and surveillance deployments in Bangladesh. With 8 Gigabit PoE+ ports, the switch can connect multiple IP cameras, wireless access points, industrial terminals, sensors, and other compatible PoE devices. Meanwhile, the 2 Gigabit SFP ports provide fiber uplink connectivity to aggregation switches, control centers, and other network infrastructure. Moreover, the 240W PoE power budget makes this model suitable for deployments that require power for several network devices from a centralized switch. The redundant dual DC power input also provides an additional power-input option for industrial installations. As a result, businesses can consider this switch for CCTV networks, factory automation, transportation infrastructure, industrial monitoring, building automation, and outdoor Ethernet deployments in Bangladesh.

BDCOM IES200-V25-2S8P User Experience

The BDCOM IES200-V25-2S8P combines full-Gigabit Ethernet, PoE+ power delivery, fiber uplinks, and advanced industrial management functions in a compact DIN-rail design. Users can connect up to eight Gigabit PoE+ devices directly through the RJ45 ports. At the same time, the two SFP ports provide fiber-based uplinks for suitable network segments. Furthermore, the L2+ feature set gives network administrators greater control over VLAN segmentation, traffic prioritization, access control, multicast management, link aggregation, and industrial ring protection.

The industrial construction also adds several useful features. For example, the switch provides IP40 protection, 6KV lightning protection, redundant DC power input, and a -40°C to +75°C operating temperature range. Therefore, it can support installations that demand more environmental flexibility than typical office Ethernet switches.

Why Choose BDCOM IES200-V25-2S8P?

The BDCOM IES200-V25-2S8P suits industrial networks that need a combination of full-Gigabit PoE+, fiber uplinks, L2+ management, and industrial environmental capability.

Its 8 Gigabit PoE+ ports provide both network connectivity and power for compatible devices. In addition, the 2 Gigabit SFP ports provide flexible fiber connectivity for suitable uplink applications. Furthermore, the switch supports ERPS and EAPS for industrial ring protection, while STP, RSTP, and MSTP provide additional spanning-tree and loop-management capabilities. As a result, the switch can support industrial network designs that require both connectivity and advanced traffic-management features.

Why Buy BDCOM IES200-V25-2S8P Industrial PoE+ Switch?

The BDCOM IES200-V25-2S8P offers considerably more functionality than a basic unmanaged PoE switch. Its L2+ management platform allows administrators to configure and manage VLANs, QoS, ACLs, static routing, multicast functions, authentication, port security, and link aggregation. Furthermore, the 240W PoE budget supports surveillance and industrial deployments where several powered devices need centralized network connectivity.

The switch also uses dual DC 48–55V power input. Moreover, its -40°C to +75°C operating temperature range supports demanding industrial environments. Therefore, it provides a practical option for installations that require both advanced networking and industrial-oriented features.

Key Features

• 8 × Gigabit PoE+ RJ45 Ports: Provides high-speed data connectivity and PoE+ power.
• 2 × Gigabit SFP Uplink Ports: Provides fiber-based Gigabit network connectivity.
• 240W PoE Power Budget: Supports multiple compatible PoE-powered devices.
• L2+ Managed Architecture: Provides advanced switching and routing functions.
• 56Gbps Backplane Bandwidth: Supports high-capacity internal switching.
• 15Mpps Forwarding Rate: Enables efficient packet forwarding.
• Dual DC 48–55V Power Input: Provides redundant industrial power connectivity.
• -40°C to +75°C Operating Temperature: Supports demanding industrial environments.
• IP40 Protection: Adds protection for suitable industrial installations.
• 6KV Lightning Protection: Provides additional protection against electrical surges.
• DIN-Rail Installation: Fits industrial control cabinets and panels.
• 4K VLAN Entries: Supports extensive VLAN configuration.
• GVRP, QinQ, and Private VLAN: Provides additional VLAN management capabilities.
• ERPS and EAPS: Supports resilient industrial ring-network designs.
• IGMP Snooping and MVR: Supports multicast traffic management.
• Static Routing: Provides basic Layer 3 routing capability.
• ACL and QoS: Helps administrators manage traffic and network access.
• 802.1X Authentication: Supports network access authentication with RADIUS and TACACS+.
• LACP and Static Link Aggregation: Supports link aggregation configurations.
• SNMP v1/v2/v3: Provides network monitoring and management options.
• SSH 2.0 and HTTPS: Supports secure remote management.
• 9KB Jumbo Frame: Supports larger Ethernet frames.
• >800,000 Hours MTBF: BDCOM specifies a high mean time between failures for the series.

Performance and Connectivity

The BDCOM IES200-V25-2S8P provides a 56Gbps switching backplane and a 15Mpps forwarding rate for Gigabit Ethernet networking. Its eight Gigabit PoE+ RJ45 ports can provide both network connectivity and power to compatible devices. Meanwhile, the two Gigabit SFP ports provide fiber uplink connectivity for suitable network segments. In addition, the switch uses store-and-forward switching and supports a 9KB jumbo frame, 8K MAC address table, and 4MB packet buffer. For surveillance deployments, the combination of Gigabit PoE+, IGMP Snooping, MVR, VLAN, QoS, and fiber uplinks can support networks that connect multiple IP cameras and transport video traffic.

Layer 2+ Networking Features

The switch provides a broad set of Layer 2+ networking functions, including:

• 4K VLAN entries
• GVRP
• QinQ
• Private VLAN
• STP
• RSTP
• MSTP
• BPDU Protection
• Root Protection
• EAPS
• ERPS
• IGMP Snooping
• IGMP Fast Leave
• MVR
• Static Routing
• DHCP Client
• DHCP Snooping
• DHCP Option 82
• 802.1P/DSCP QoS
• Traffic Shaping
• L2/L3/L4 ACL
• IPv4 ACL
• IPv6 ACL
• VLAN ACL
• Port Isolation
• Port Security
• IP + MAC + Port Binding
• IEEE 802.1X
• RADIUS
• TACACS+
• Static Link Aggregation
• LACP
• Ethernet OAM
• Backup Link

Management and Security

The BDCOM IES200-V25-2S8P supports several management methods, including console access, Telnet, SSH 2.0, HTTP/HTTPS, SNMP v1/v2/v3, TFTP/FTP, and RMON. In addition, its security functions include L2/L3/L4 ACLs, port security, IP/MAC/port binding, DHCP Snooping, DHCP Option 82, IEEE 802.1X authentication, RADIUS, and TACACS+ authentication. These features allow administrators to control network access, separate traffic, prioritize important applications, and monitor network activity. Therefore, the switch can support more controlled and structured industrial network deployments.

Where Can BDCOM IES200-V25-2S8P Be Used?

The BDCOM IES200-V25-2S8P can support various industrial and commercial networking applications, including:

• Industrial automation
• Factory networking
• Manufacturing facilities
• IP surveillance systems
• CCTV networks
• Outdoor IP camera networks
• Transportation systems
• Building automation
• Industrial monitoring
• Wireless access point networks
• Smart city infrastructure
• Security monitoring systems
• Industrial control cabinets
• Production lines
• Machine networking
• Industrial Ethernet networks
• Fiber-based industrial networks
• Remote surveillance locations

What is the Price of BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch in Bangladesh?

The BDCOM IES200-V25-2S8P L2+ Industrial PoE+ Switch is available in Bangladesh. For the latest price, stock availability, warranty details, and complete product information, please contact us via WhatsApp or email. Our team will provide you with the latest quotation and necessary detail
